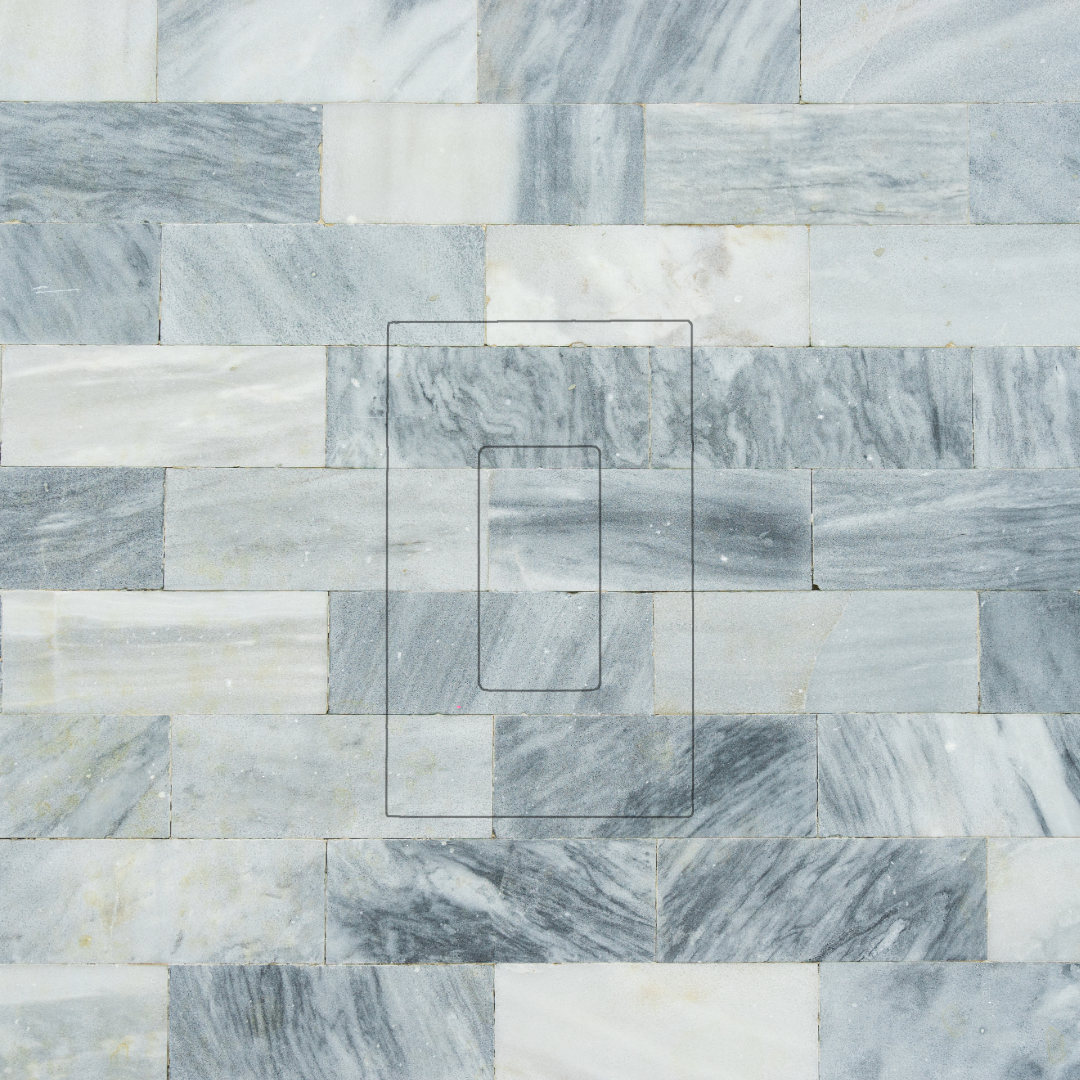

This Kit is designed to be installed by:
First: Electrician – The job is to receive the kit(s) inspect the kit for correct contents and give the faceplate to the construction supervisor/manager.
Second: Drywall installer
Third: Tile Installer
Tile Installation Instructions
- Attach the plastic spacers to the two brackets. The outer brackets on the spacers are used for vertical installation while the closer spacers are used for horizontal installation.
- Install the bracket to the stud with the supplied screws. Level the bracket and install the opposite side. Install the screws in the lower bracket.
- Install the wiring in the Raco Box. Glue the Raco box by removing the protective tape to the base bracket. wire the device and install in the base plate to the brackets using the supplied self-tapping screws. Use the top middle screw hole first. Level and install the rest of the screws.
- Do not tighten the device. Install the protection plate. Tighten the device through the openings in the protection plate.
- Level the base plate to the surface of the tile by adjusting the screws through the protection plate. LEVELING RECOMMENDATION – Loosen the four outer leveling screws. Adjust the inner screws with the supplied TORX wrench to the desired level by pushing them down on the protection plate. Tighten the outer screws to keep level.
- Place adhesive tabs on holes.
- Grout and finish.

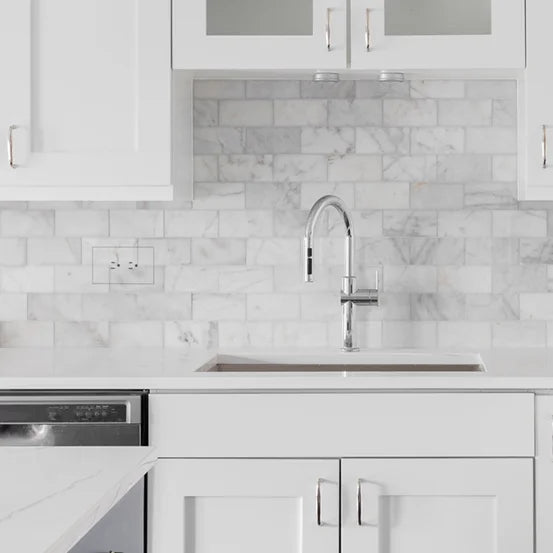

- Remove the protection plate and replace it with an applicable finishing plate.
